Tight Buffer Optic Fiber cable

1.Characteristic

.Excellent stripping performance

.Suited to SM fiber and MM fiber(50μm and 62.5μm)

.It is ideal choice of active apparatus used pigtail

.Excellent temperature performance

.Buffer material: PVC,LSZH,Hytrel,NYLON,PVDF

2.Geometrical Characteristics

TBF Diameter(μm)	900±50	600±50
TBF Weight(kg/km)	0.9	0.4
Fiber Cladding Diameter(μm)	125±1	125±1

3.Mechanical Characteristics

Max Load(N)	Short Term	6
	Long Term	3
Bending Radius(CM)	Dynamic	20×D (D: TBF Diameter)
	Static	10×D (D: TBF Diameter)

4.Fiber

Fiber Type(core/cladding dimension

8.3/125, 50/125, 62.5/125

5.Transmission Characteristics

	SMF	50/125	62.5/125
	1310/1550(nm)	850/1300(nm)	850/1300(nm)
Max Attenuation(dB/km)	0.45/0.30	3.5/1.5	3.5/1.5
AVG. Attenuation(dB/km)	0.40/0.25	3.0/1.0	3.0/1.0
Min Bandwidth(MHz·km)	——	400/400	160/500

6.Environmental Characteristics

Storage Operating Temperature

-20℃～+60℃

Product Tags:

Tight Buffer Optic Fiber cable



FIBER optic COMMUNICATION cable



fiber optic equipment

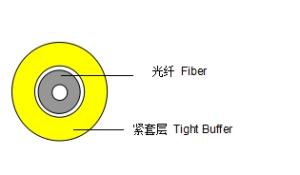

Tight Buffer Optic Fiber cable Images
